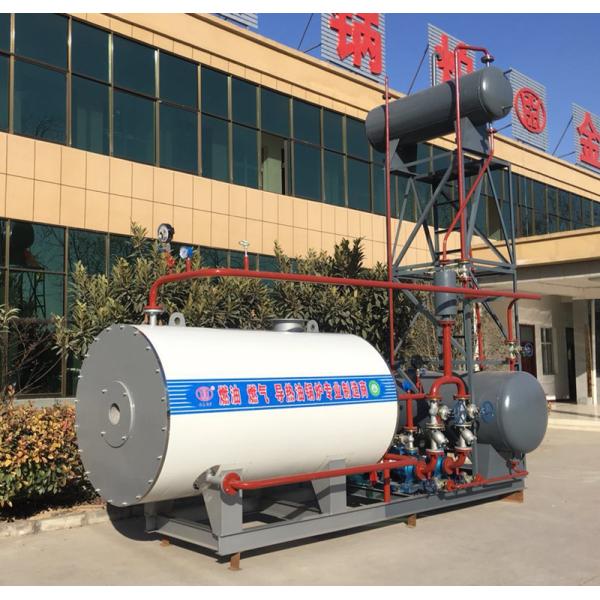

Industrial Gas Oil Fired Thermal Conduction Oil Boiler Thermic Fluid Boiler Thermal Oil Heater For Oil Refinery Plant​

Thermic Fluid Heater, thermal oil boiler
Heat Power:300,000-2,000,000 Kcal/H
Working Pressure :0.8 Mpa
Fuel :light oil,heavy oil,diesel
Application : textile printing and dyeing, plastic and rubber, paper industry, wood industry, building material, food industry

YY(Q)W series oil fired thermal oil boiler is an safe and energy saving boiler with working characteristics of low working pressure (0.8 MPa) and high temperature (330℃).
The heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating. Jinzhen Boiler has a mature R&D and design team, could customize the boilers based on customers’ requirement.

Technical parameter

Main features of industrial thermal oil boiler:
(1) Access to low-pressure high-temperature thermal medium, convenient adjustment, heat evenly, to meet precise process temperature.
(2) Liquid circulation heat, no condensation heat loss emissions, high thermal efficiency heating system.
(3) The working medium heat and heat and temperature fluctuation on the volume change in the compensation measures within the system.
(4) Circulating heat medium before the strict control of air, water and other low volatile content of the technical measures.
YY(Q)W series thermal oil boiler adopts horizontal chamber combustion three-coil structure,and its body is composed of outer coil,middle coil,inner coil and rear coil.It is widely applied for oil chemical industry, chemical fiber industry, wood processing industry, paper making industry, building materials industry, food industry,etc.

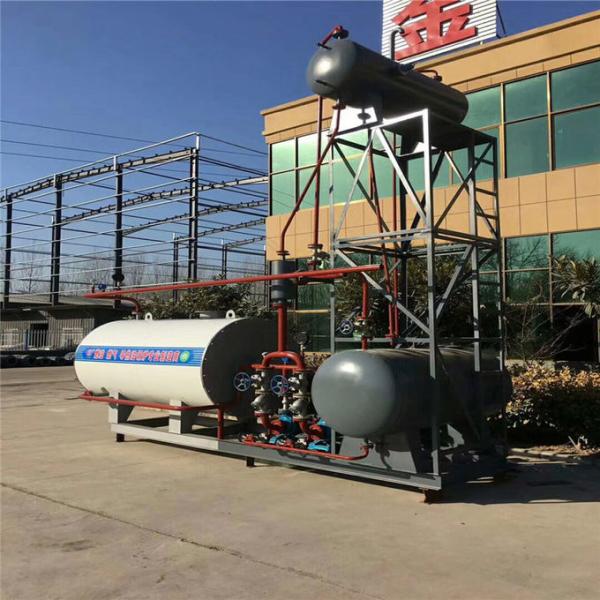

Full set fuel (gas) thermal oil boiler is consist of Horizontal boiler body, Boiler Burner (imported famous brand), Instruments, Chimney, Circulating Pump, Oil Filling Pump,Expansion Tank, Oil Storage Tank, Oil Gas Separator,Electric Control Cabinet (Chinese & English Version), Economizer (Optional),etc.
The Gas/Oil Fired thermal oil boiler auxiliaries :
oil fired thermic fluid heater hot oil boiler

Thermal Oil Boiler For Hot Press takes diesel, gas, town gas as fuel. Three pass and wet back structure enhance it's thermal efficiency and lower flue gas temperature. Thicker insulated material layer makes radiating at minimum limit.

All boilers are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm, etc. functions.
Boiler Room Layout



Application:
Owing to its characteristics of high heating temperature, low working pressure, and energy saving, the oil fired thermal fluid heater could be widely used in a variety of industrial heating process.
1) Textile industry - dyeing machine, drying rooms, high temperature machine, resin setting machine.
2) Food industry - cooking, drying, vegetable oil refining.
3) Chemical industry - oil chemistry, polymer industry, reaction tanks, distillation, concentration.
4) Plastics industry - plastics fired, extruded shape.
5) Rubber industry - hot press, hot extent, extrusion, vulcanization molding, injection, etc.
6) Paper industry - drying, corrugated paper processing, calender, glue roller.
7) Wood industry - hot processing, heat setting.
8) Machinery industry - drying, assembly processing
9)Building materials industry - plasterboard drying, asphalt heating, emulsified asphalt, asphalt concrete, concrete component maintenance, etc.
10) Synthetic fiber industry: polymerization, melting, spinning, extension, dry

FAQ
What is the highest temperature that thermal oil heater could achieve?
thermal oil heater can reach as high as 330℃, and working under low pressure (<1.0MPa)

What are the heat-resistance temperature of grate and furnace?
The heat resistance temperature of grate is related to the grate material, the highest temperature could be as high as 1100℃, and the lower temperature could be 700℃.
The highest heat resistance temperature of furnace could be about 1700℃~1800℃.

What is conduction oil/ hot oil / heat transfer fluid?
Conduction oil has a high boiling point, it usually used for the industries that need the temperature of 150~350℃, to instead of steam. The hot oil has the advantages of high transfer efficiency, fast heat transfer, and good thermal stability.

Henan Jinzhen Boiler Co., Ltd is a professional manufacturer that specialized in the environment-friendly steam boiler and pressure vessels’ design, manufacture, installation, maintenance. We specialized in gas steam boiler, oil steam boiler, diesel steam boiler, coal steam boiler, biomass steam boiler, wood steam boiler, coal thermal oil boiler, biomass thermal oil boiler, gas fired thermal oil boiler, oil fired thermal oil boiler

Our factory is located in beautiful Zhoukou City which nearby Zhengzhou Airport, Shangqiu Railway Station, gets convenient traffic.We have over 6,000sq.m. building area, 105 employees, annual sales amount exceeds 25,000,000USD which includes 25% export amount in worldwide.

Our boilers include more than 150 kinds. There are:
(1) DZL coal/biomass fired steam boiler(1-20ton/h;)
(2) DZH wood fired steam boiler(0.5-6ton/h;)
(3) SZL biomass/coal fired steam boiler(4-25ton/h;)
(4) WNS series gas/oil fired steam boiler(0.5-20ton/h;)
(5) YLL(W) series coal/biomass fired thermal oil boiler(150,000-16,000,000Kcal)
(6) YY(Q)W gas /oil fired thermal oil boiler(150,000kcal-12,000,000Kcal)

All products comply with GB/T quality standards and are greatly appreciated in a variety of markets throughout the world. Our well-equipped facilities and excellent quality control throughout all production stages to totally guarantee customers' satisfaction.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Australia, Mexico, Vietnam, Russia, Kazakhstan, South Africa, Syria,South Africa, Ethiopia, etc.
